Chlorine Dioxide Systems

Activ-Ox® dosing systems are built with safety, simplicity and reliability in mind to ensure that you get the right amount of chlorine dioxide ClO2 on demand.

They are designed to work with the unique range of Activ-Ox pre-cursor chemicals which give a 95%+ chlorine dioxide yield instantly.

This instant reaction has enabled us to produce a much simpler and safer dosing system than a conventional chlorine dioxide generator.

To the right is an example of our Tee reactor, this is where our chemicals are mixed its instant and safe, the conventional method of producing ClO2 is by using a reaction chamber which slowly fills with toxic gas.

Our method only doses directly into the water being treated with our patented chemistry, it’s so effective it can even be activated by lemonade or cola, which you can see demonstrated in the video below.

Activ-Ox® is the only system to dose instantly into solution without hazardous Gas

Activ-Ox Features Demo

Safety First

  • Instant reaction – so no need for chemical mixing tanks or generator vessels containing high levels of chlorine dioxide.
  • Low hazard chemicals – no strong acids
  • Mixing and reaction takes place in a special reaction manifold which is integral to the water flow.
  • No gas is produced – Chlorine Dioxide is only ever produced in solution and then immediately diluted to it use concentration in the water stream being treated.
  • No chance of overdosing – dosage is controlled automatically, normally by impulsing water meter to prevent under or overdosing.
  • Tamper-proof – the dosing pumps are housed in separate lockable enclosures
  • Double walled injection tubing – so no chance of a leak
  • Different coloured chemicals drums with male and female lids to prevent operator error
  • Chemical bund option for extra security
  • Chemical low-level alarm as standard
  • Additional monitoring and alarm options available – pump no flow, chlorine dioxide monitoring & telemetry



Simplicity & Controllability

  • Instant, high yield reaction
  • Simple installation
  • Easy to set up and adjust
  • Automatic operation based on water flow
  • Simple test kit available

Activ-Ox 2100 Eco System

  • Maximum operating pressure: 10 Bar
  • Electrical requirement: 230V + or – 10%, 50Hz, single phase
  • Chlorine Dioxide output: 0 – 10g/hr
  • Intended Operational flow range: 0 – 100m3 /day
  • Intended dosage rate: 0.1 – 5.0 ppm ClO2

Price: from £POA

The Activ-Ox 2100 is Ideal for legionella control in office buildings, nursing homes and small hotels or any smaller application where you need to accurately dose chlorine dioxide to a once-through application.

The 2100 model is the first of our new generation dosing systems which incorporate our new colour screen controller which has been specifically designed for Activ-Ox to incorporate advanced functionality so the unit is adaptable to suit almost any application’s requirement.

pdf downloadDownload our Brochure on the Activ-Ox 2100 Eco.

Activ-Ox-2100-Eco

Activ-Ox 3100 Pro System

  • Maximum operating pressure: 16 Bar
  • Electrical requirement: 230V + or – 10%, 50Hz, single phase
  • Chlorine Dioxide output: 0 – 80g/hr
  • Intended Operational flow range: 0 – 500m3 /day
  • Intended dosage rate: 0.1 – 5.0 ppm ClO2 (higher levels possible)

Price: from £POA

Similar to the 2100, the Acitv-Ox 3100 has a larger set of pumps, cabinets and is designed to treat significantly more water with a larger water meter and reaction T. This unit is suitable for medium-sized applications such as hospitals, hotels and food processing sites. The Activ-Ox 3100 Standard also comes with an enhanced range of alarm options.

Activ-Ox 3100 is the second unit in our new range of Activ-Ox units and incorporates our colour screen controller with built-in advanced control options including:

  • Water flow
  • Periodic (Day & Time)
  • Built-in timer
  • Batch control
  • Remote start

pdf downloadDownload our Brochure on the Activ-Ox 3100 Pro.

Activ-Ox-3100-Pro

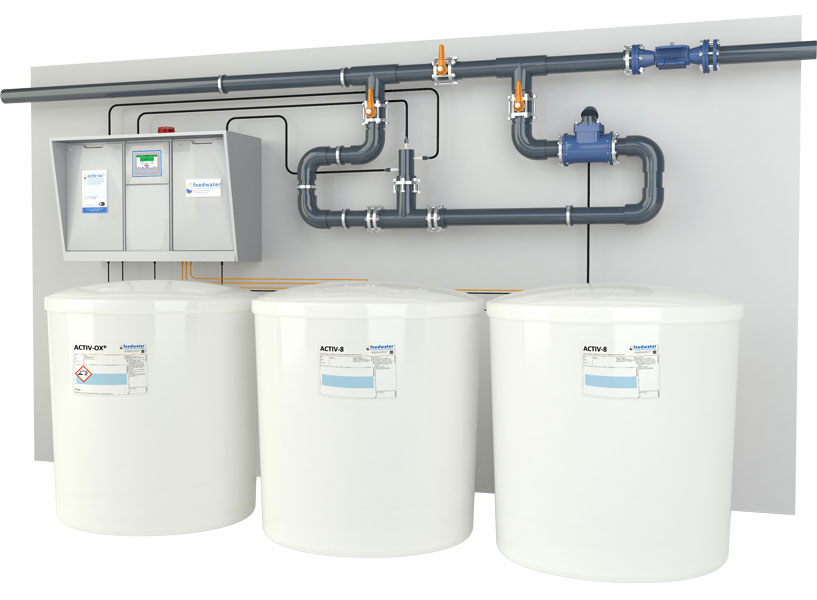

Activ-Ox 4100 Chlorine Dioxide Systems (for larger applications)

  • Maximum operating pressure: 16 Bar (dependent on output)
  • Electrical requirement: 230V + or – 10%, 50Hz, single phase
  • Chlorine Dioxide output: 0 – 300g/hr
  • Intended Operational flow range: 0 – 5000m3 /day
  • Intended dosage rate: 0.1 – 5.0 ppm ClO2 (higher levels possible)

Price: from £POA

The Activ-Ox 4100 series systems is built to cope with high flow rates and high dosage volumes and is suitable for commercial & industrial sites with significant water usage. Incorporating everything from the smaller units, the 4100 doses from three chemical precursor chemicals rather than two to reduce which means fewer chemical deliveries are required.

pdf downloadDownload our Brochure on the Activ-Ox 4000 Multi.

Large chlorine dioxide application

Image above is of a duel Activ-Ox 4100 set up within secured cabin.
